PORTABLE OXYGEN CONCENTRATOR

PORTABLE OXYGEN CONCENTRATOR

State-of-the-arts design and 9 functions：
1.Rich Oxygen: 30% concentration rich Oxygen supply
2.Performance: Efficient Oxygen supply
3.Design: concise top panel for simplified operating procedure
4.Carry: portable and light
5.Energy efficient
6.Nano ear phone: Oxygen supplier free from contamination
7.Low noise: mute motor and biological Oxygen generation
8.Safety broad-spectrum: Oxygen concentration satisfying varied demands
9.Ergonomic design: harmonious airflow

What can better than it?

Touch keyboard of ergonomic design
Simple operating procedure
Adjustable Oxygen supply directions
Noise damper for low noise operation
Sector air inlet of elegant design
Portable

Special recommendation for 6 groups of potential consumers :

White-collar women: skin care, maintenance of skin nutrition and elasticity and reduction of
Aged: prolonging life, improving immunity, preventing diseases, oxygen therapy
Pregnant women: beneficial to the women and helpful to fetus development
sub-health status and improving work efficiency
Business people: relaxing physical and mental tension, improving physical ability, reducing
Student: improving remembrance, refreshing and reducing mental fatigue
Worker: releasing fatigue, refreshing and increasing physical ability

Features
•Simplified concise control system with intensive control design operational under the control of only 2 buttons
•Air purifying and refreshing, photocatalyst active carbon functions to remove dusts, bacteria and odour from room air.
•Mild airflow supplied for a harmonious atmosphere.
•Advanced technology incorporated for precise Oxygen concentration control to about 30 % for rich Oxygen achievements.
•Styled design, selected material, compact structure, stream-line front panel, elegant profile, fashionable, style, ear-phone shaped oxygen breathing apparatus made of Nano material, sterilizing and contamination free.

Technical Parameters
•Airflow outlet: Approx 3L/min (standard atmospheric pressure)
•Concentration: 29%+/-2%( standard atmospheric pressure)
•Size: 260(L)*110(W)*170(H) mm
•Wight: Generating unit+ adapter 2.0KG
•Generating unit + adapter + lithium battery (15V,4A) + charger 2.4KG
•Power Consumption: average below 32 W
•Rated Voltage: AC 100-240V 50-60HZ or DC 12-17V
•Noise: below 50dB
•Application temperature: 5～40C Application humidity: below 90%RH
•Storage temperature: 0～40C Storage humidity: below 80%RH
•The machine is recommended to work up to 8hrs continuously, and then let it rest for about 30 minutes and restart.
•Battery duration is 60 – 80 minutes per full charge.

Operation guide

1. After unpacking, assemble the parts of holder frame and the generating unit.

2. Connect all the parts the holder frame to the Oxygen outlet of the generate unit with the Oxygen hose.

3. Connect the appliance with the power supply. There is no indication on the control panel as shown in the figure as shown in the figure.

Press button 2 to initiate the appliance, the LBD indicator by digit 10 and air supply indicator goes on, and the appliance will keep operating for 10 minutes. Press button 1, the LBD indicator by digit 20 and air supply indicator goes on while the indicator by the digit 10 goes off, the appliance will keep operating for 20 minutes. If button 1 is pressed the third time, the LBD indicator by digit 30 and air supply indicator goes on while the indicator by digit 20 goes off, the appliance will keep operating for 30 minutes. If button 1 is pressed again, the cycle will be repeated. If selected operating period expires, indicators by digits 10, 20 or 30 will go off and the operating appliance will cease. In the process of time setup, all indicators by digit 10, 20 and 30 will go off if button 2 is pressed and the appliance will be turned off.

In the process of time setup, the front light will be kept on until the very end. All indicators and the front light will go off and the appliance ceases operation when button 2 is pressed.

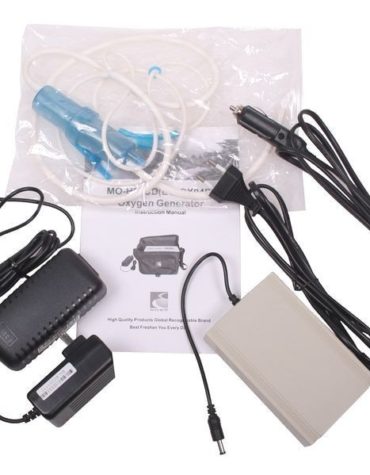

Parts :
•Oxygen breathing apparatus
•Generating unit
•Oxygen outlet
•Oxygen hose
•Capsule
•Filter
