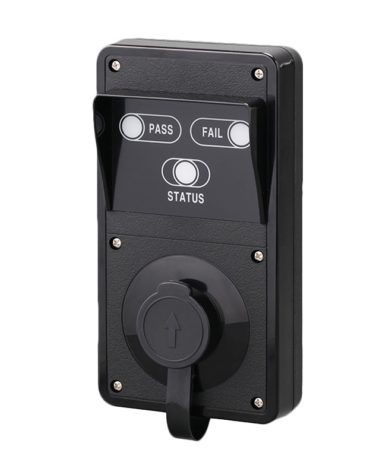

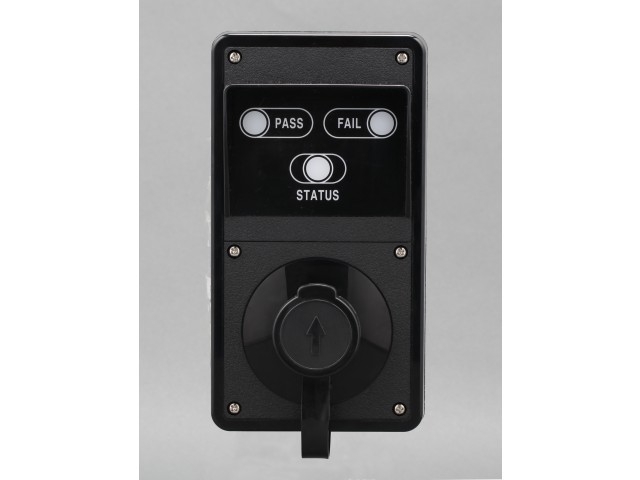

ALCOSCAN ENTRANCE BREATHALYSER SYSTEM EBS010
Alcoscan EBS010 is a high speed automatic industrial breathalyser that is used to check the breath of workers for alcohol at Turn Stile gates and Entrances to sites, offices, mines, refineries and warehouses.
Result outputs are provided by a 12V 1 sec pulse separate for Pass and Fail and by digital USB output in PC mode.
If Dry Contact Relay OUTPUT for Pass and Fail is required an optional extra Relay Box is available.
A Pass result allows access and a Fail result prevents access. Breath tests are ethanol specific and EBS010 performs over 600 tests per hour. Alcoscan EBS010 is built for Industrial and High Security environments.
Annual calibration is recommended.
Indication of B.A.C
1) Pass is below 0.01% B.A.C. Fail can be set to fail from 0.01% B.A.C and up
Accuracy +/-0.001%BAC at 0.050%BAC
Mouth piece No Mouthpiece required
Sensor Replaceable fuel cell type alcohol sensor
Power supply 12VDC 1.5A power supply required – Supplied Standard
Dimension (mm) 205 (height) X 108 (width) X 95
– Auto power off
– Air flow rate checking for no blows
– Calibrated to fail from 0.01% B.A.C to prevent access at the lowest possible BrAC levels
– Pricing excludes installation costs
– Time keeping and attendance technicians can easily install
